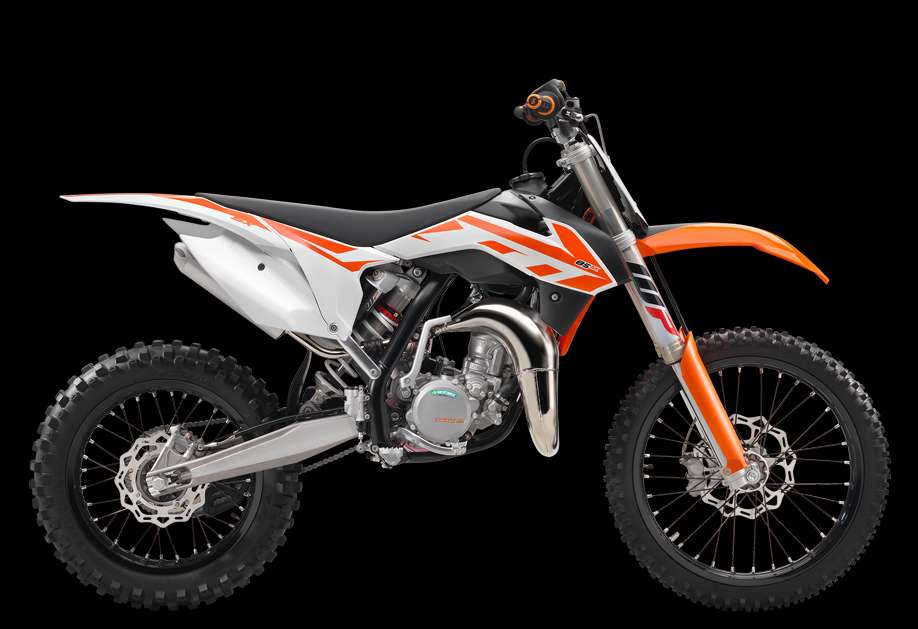

KTM MX - 85 SX 19/16

85 SX 19/16

Posted on Posted in KTM, MX

ENGINE

  • DESIGN

    1-cylinder, 2-stroke engine

  • DISPLACEMENT

    84.9 cm³

  • BORE

    47 mm

  • STROKE

    48.95 mm

  • STARTER

    Kickstarter

  • TRANSMISSION

    6-speed

  • PRIMARY DRIVE

    19:66

  • SECONDARY GEAR RATIO

    14:49

  • CLUTCH

    Wet, multi-disc clutch, Formula hydraulics

  • EMS

    Moric digital 2M1

CHASSIS

  • FRAME DESIGN

    Central-tube frame with double-cradle

  • FRONT SUSPENSION

    WP upside-down Ø 43 mm

  • REAR SUSPENSION

    WP PDS shock absorber

  • SUSPENSION TRAVEL (FRONT)

    270 mm

  • SUSPENSION TRAVEL (REAR)

    300 mm

  • FRONT BRAKE

    Disc brake

  • REAR BRAKE

    Disc brake

  • FRONT BRAKE DISC DIAMETER

    240 mm

  • REAR BRAKE DISC DIAMETER

    210 mm

  • CHAIN

    1/2 x 5/16″

  • STEERING HEAD ANGLE

    66 °

  • WHEELBASE

    1290 ± 10 mm

  • GROUND CLEARANCE

    377 mm

  • SEAT HEIGHT

    890 mm

  • TANK CAPACITY (APPROX.)

    5 l

  • WEIGHT READY TO RACE (WITHOUT FUEL)

    68.5 kg
